MongoDb

Overview

MongoDb step is used to access MongoDb and make basic queries on the database (inserting, selecting, updating and deleting)

Configuration

• Connection String (connection) - the MongoDb connection string (the recommended way of usage would be to specify a global connection string and access it here through e.g. {{$env.MONGODB_CONNECTION}})
• Database Name (database) - the MongoDB database to connect to
  • Actions (actions) - list of queries to be made
    • Action (actions[].action) - action to perform: insert, find, update, delete, aggregate
    • Collection Name (actions[].collection) - name of the collection on which to execute the query
    • Target path (actions[].target) - the doc node on which to attach the result of query
    • Query (actions[].query) - query to perform on collection
    • Options (actions[].options) - additional options for query
    • Payload (actions[].payload) - used for insert query to define payload to be inserted into collection
    • Filter (actions[].filter) - filter used to determine which documents to update
    • UpdateDoc (actions[].updateDoc) - update payload

note

Find syntax differs from Mongo shell, see Node.js driver documentation

MongoDB ObjectId

If query contains references to mongodb internal ids that are using ObjectId special syntax has to be used.

For example query like this: { "_id" : "ObjectId("5e07158c25ddae1f53b621fd")" }

has to be used in this way: { "_id" : "$ObjectId(5e07158c25ddae1f53b621fd)" }

Essentially calls to mongodb ObjectId("<id>") has to be replaced with $ObjectId(<id>).

Examples

Insert

MongoDb insert flow example

tags: []
steps:
  - stepType: mongo-db
    config:
      actions:
        - action: insert
          query: {}
          options:
            sort: {}
            projection: {}
          filter: {}
          payload:
            - title: The New Document
              body: this is a short new document
          updateDoc:
            $set: {}
          collection: test
          target: result
    connection: "mongodb://mongo:27017"
    database: demo
    description: insert documents into collection
    name: MongoDB
    condition: ""
sampleData: {}

Flow result

{
  "doc": {
    "result": {
      "acknowledged": true,
      "insertedCount": 1,
      "insertedIds": {
        "0": "62bc695ecba369afc6709388"
      }
    }
  },
  "errors": [],
  "performance": {
    "steps": [
      {
        "step": "mongo-db",
        "executionTime": 61
      }
    ],
    "executionTimeOfFlow": 61,
    "timeMetric": "ms"
  }
}

Find

note

If query contains references to mongodb internal ids that are using ObjectId special syntax has to be used.

For example query like this: { "_id" : "ObjectId("5e07158c25ddae1f53b621fd")" }

has to be used in this way: { "_id" : "$ObjectId(5e07158c25ddae1f53b621fd)" }

Calls to mongodb ObjectId("<id>") has to be replaced with $ObjectId(<id>).

MongoDb find example

tags:
  - example
steps:
  - stepType: mongo-db
    config:
      actions:
        - action: find
          query: {}
          options:
            sort: {}
            projection: {}
          filter: {}
          payload: []
          updateDoc:
            $set: {}
          collection: test
          target: query
    connection: "mongodb://mongo:27017"
    database: demo
    description: query collection
    name: MongoDB
    condition: ""
sampleData: {}

Result

{
  "doc": {
    "query": [
      {
        "_id": "64df4a17d3527170778b07f0",
        "title": "The New Document",
        "body": "this is a short new document"
      }
    ]
  },
  "errors": [],
  "performance": {
    "steps": [
      {
        "step": "mongo-db",
        "executionTime": 13
      }
    ],
    "executionTimeOfFlow": 13,
    "timeMetric": "ms"
  }
}

Find by id

MongoDb find by id example

tags:
  - example
steps:
  - stepType: mongo-db
    config:
      actions:
        - action: find
          query:
            _id: $ObjectId(64df4a17d3527170778b07f0)
          options:
            sort: {}
            projection: {}
          filter: {}
          payload: []
          updateDoc:
            $set: {}
          collection: test
          target: result
    connection: "mongodb://mongo:27017"
    database: demo
    description: query collection
    name: MongoDB
    condition: ""
sampleData: {}

Result

{
  "doc": {
    "result": [
      {
        "_id": "64df4a17d3527170778b07f0",
        "item": "something"
      }
    ]
  },
  "errors": [],
  "performance": {
    "steps": [
      {
        "step": "mongo-db",
        "executionTime": 57
      }
    ],
    "executionTimeOfFlow": 58,
    "timeMetric": "ms"
  }
}

Find with $or

MongoDb find $or example

tags:
  - example
steps:
  - stepType: mongo-db
    config:
      actions:
        - action: find
          query:
            $or:
              - _id: $ObjectId(651e9efbc8fba1e0fa66dba6)
              - _id: $ObjectId(651ea60fc8fba1d0fa66dba7)
          options:
            sort: {}
            projection: {}
          filter: {}
          payload: []
          updateDoc:
            $set: {}
          collection: test
          target: result
    connection: "mongodb://mongo:27017"
    database: demo
    description: query collection
    name: MongoDB
    condition: ""
sampleData: {}

Result

{
  "doc": {
    "result": [
      {
        "_id": "651e9efbc8fba1e0fa66dba6",
        "item": "cat"
      },
      {
        "_id": "651ea60fc8fba1d0fa66dba7",
        "item": "dog"
      }
    ]
  },
  "errors": [],
  "performance": {
    "steps": [
      {
        "step": "mongo-db",
        "executionTime": 57
      }
    ],
    "executionTimeOfFlow": 58,
    "timeMetric": "ms"
  }
}

Update

MongoDb update example

tags: []
steps:
  - stepType: mongo-db
    config:
      actions:
        - action: update
          query: {}
          options:
            sort: {}
            projection: {}
          filter:
            title: The New Document
          payload:
            - title: The New Document
              body: this is a short new document
          updateDoc:
            $set:
              title: Updated title
          collection: test
          target: result
    connection: "mongodb://mongo:27017"
    database: demo
    description: update documents into collection
    name: MongoDB
    condition: ""
sampleData: {}

Result

{
  "doc": {
    "result": {
      "acknowledged": true,
      "modifiedCount": 1,
      "upsertedId": null,
      "upsertedCount": 0,
      "matchedCount": 1
    }
  },
  "errors": [],
  "performance": {
    "steps": [
      {
        "step": "mongo-db",
        "executionTime": 11
      }
    ],
    "executionTimeOfFlow": 11,
    "timeMetric": "ms"
  }
}

Aggregate

The query must be an array of objects when using this function.

To know more about aggregation stages, see MongoDb documentation

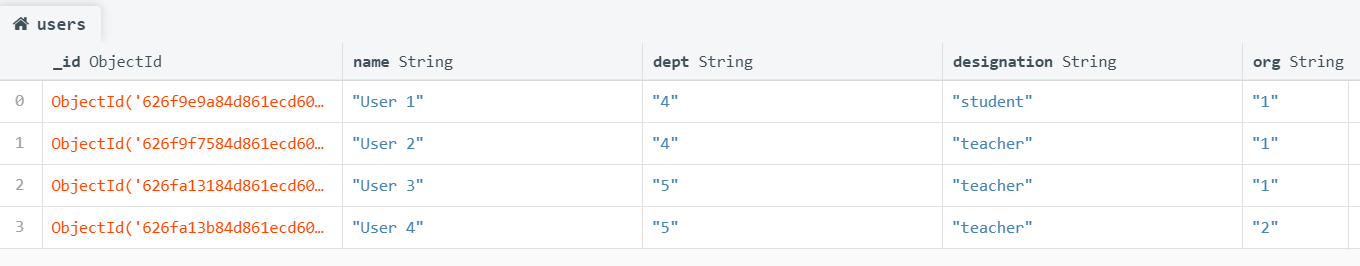

For below example the data in MongoDb collections is:

In example below there is 2 Mongo steps - to set up data, and to aggregate data.

Aggregate flow example

tags:
  - general
sampleInputSchema: ""
sampleData: {}
description: ""
steps:
  - name: Prepare data
    description: ""
    config:
      actions:
        - action: delete
          query: {}
          options:
            sort: {}
            projection: {}
          collection: users
          target: deleteResult
        - action: insert
          payload:
            - name: User 1
              dept: "4"
              designation: student
              org: "1"
            - name: User 2
              dept: "4"
              designation: teacher
              org: "1"
            - name: User 3
              dept: "5"
              designation: teacher
              org: "1"
            - name: User 4
              dept: "5"
              designation: teacher
              org: "2"
          query: {}
          options:
            sort: {}
            projection: {}
          collection: users
          target: insertResult
    stepType: mongo-db
    connection: mongodb://mongo:27017
    database: demo
    condition: ""
  - name: MongoDB aggregate
    description: ""
    config:
      actions:
        - action: aggregate
          query:
            - $match:
                org: "1"
            - $group:
                _id: $dept
                totalusers:
                  $sum: 1
          options:
            sort: {}
            projection: {}
          filter: {}
          payload: []
          updateDoc:
            $set: {}
          collection: users
          target: result
    stepType: mongo-db
    connection: mongodb://mongo:27017
    database: demo
    condition: ""

Result

{
  "doc": {
    "deleteResult": {
      "acknowledged": true,
      "deletedCount": 4
    },
    "insertResult": {
      "acknowledged": true,
      "insertedCount": 4,
      "insertedIds": {
        "0": "64df4e44d3527170778b0803",
        "1": "64df4e44d3527170778b0804",
        "2": "64df4e44d3527170778b0805",
        "3": "64df4e44d3527170778b0806"
      }
    },
    "result": [
      {
        "_id": "4",
        "totalusers": 2
      },
      {
        "_id": "5",
        "totalusers": 1
      }
    ]
  },
  "errors": [],
  "performance": {
    "steps": [
      {
        "step": "mongo-db",
        "executionTime": 12
      },
      {
        "step": "mongo-db",
        "executionTime": 10
      }
    ],
    "executionTimeOfFlow": 22,
    "timeMetric": "ms"
  }
}
